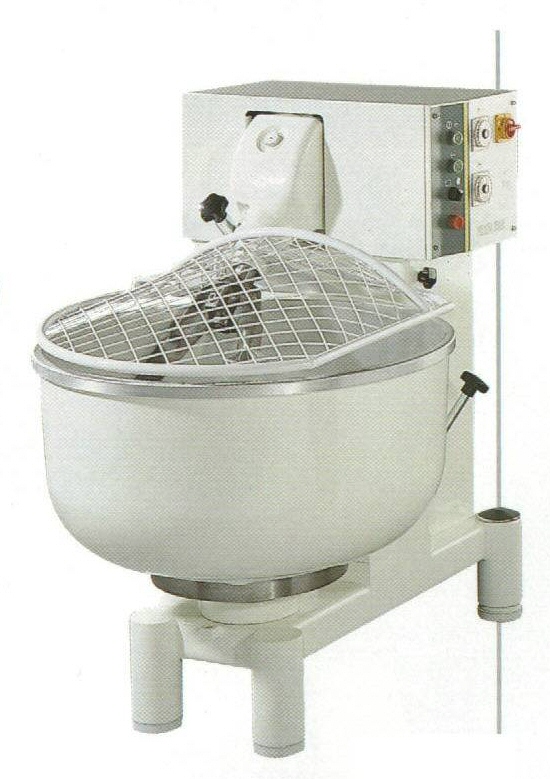

•Fork
Mixer with Fixed Bowl
|
-- Aluminum Bowl
-- Manual Brake
-- Two Fork Arm
-- Two Speed Automatic Optional
-- Stainless Steel Bowl Optional
-- Reverse Rotation Optional
|
|

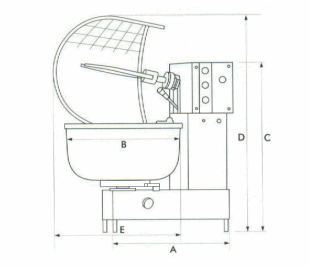

FORK MIXER (FIXED BOWL) SPECIFICATIONS
![](images/BB-FORK-MIXER.jpg)
Model*
|
DoughCapacity
Minimum/Maximum
|
A
|
B
|
C
|
Weight
|
Power
(KW)
|
2170S
2170M
|
60
|
175
|
45"
|
50"
|
44"
|
970 lbs
|
5.50
|
2230S
2230M
|
85
|
255
|
54"
|
46"
|
46"
|
992 lbs
|
5.50
|
2330S
2330M
|
115
|
355
|
57"
|
47"
|
49.5"
|
1014 lbs
|
5.50
|
3440S
3440M
|
175
|
525
|
62"
|
55"
|
55"
|
1367 lbs
|
8.10
|
![fork mixer controls](images/forkrbcontrols.jpg)
* S indicates single timer.
|
![fork mixer controls](images/forkrbcontrolm.jpg)
* M indicates two timers.
|
All mixers
are 220 volts, 3 phase, 60 Htz.
